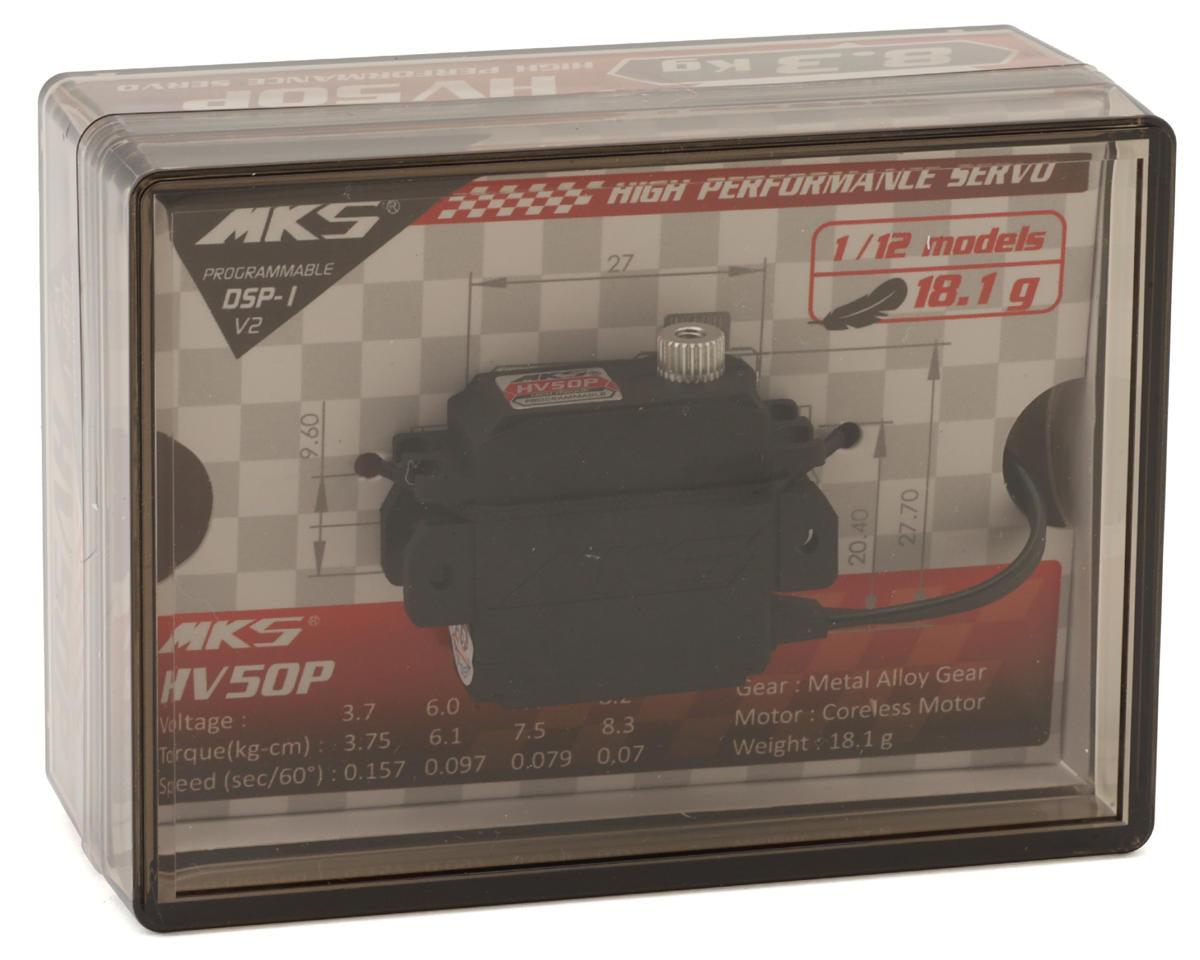

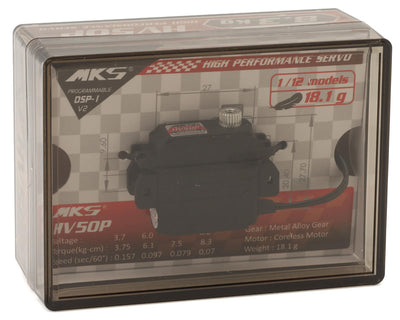

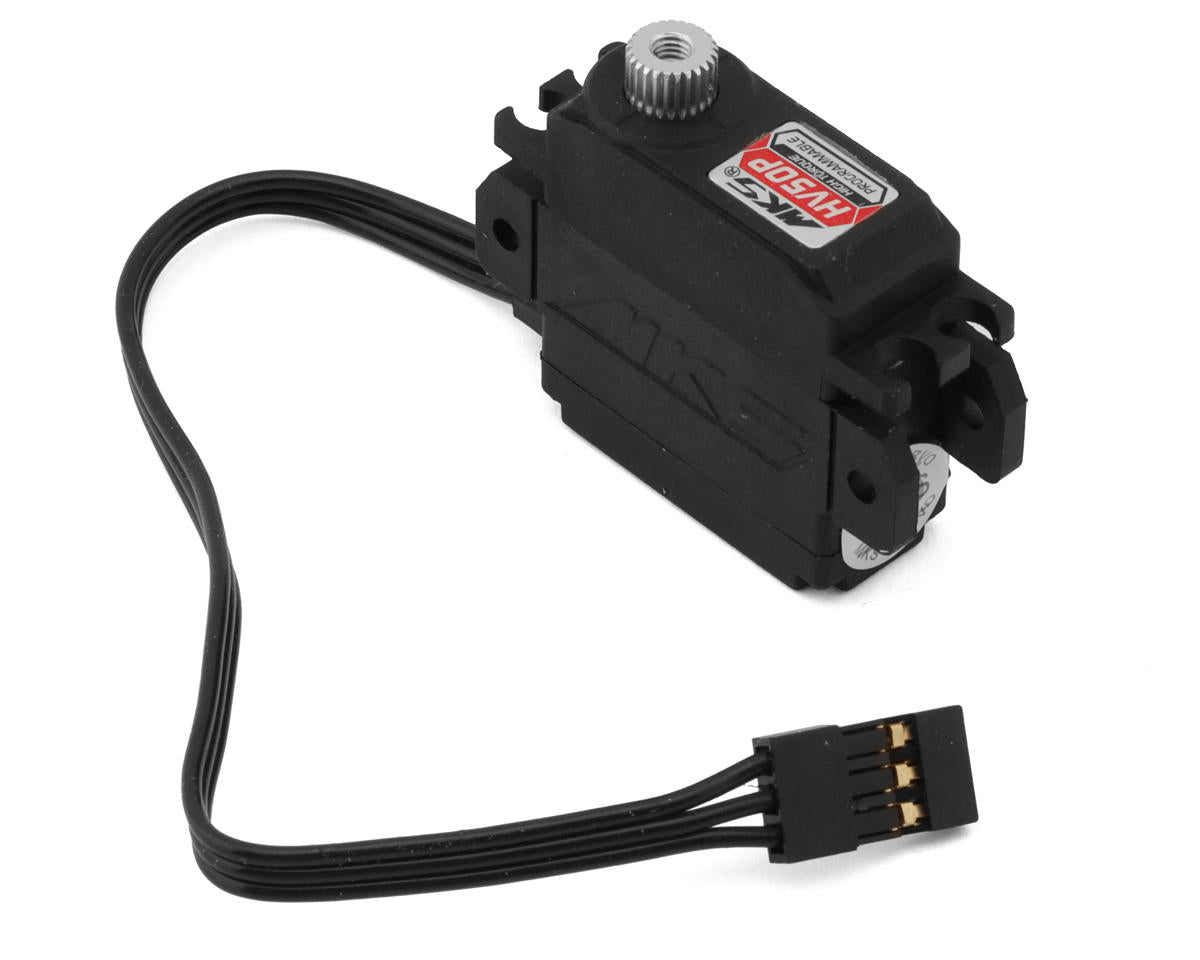

This is the MKS HV50P 1/12 metal gear high voltage servo. Designed to fit most 1/12 applications, this servo is an excellent addition for your next build. This high performance servo is capable of handling up to 8.4V and boasts an impressive 0.071 sec/60° speed and 8.3 kg-cm (115.2 oz/in) of torque.
Features:
- Uses Pulse Width Control (PWM)
- High quality coreless motor
- Dual ball bearing
- Full metal gears
Specifications
Voltage:
- 4.0-8.4V DC
Torque:
- 6V: 84.7 oz/in (6.1 Kg/cm)
- 7.4V: 104.1 oz/in (7.5 Kg/cm)
- 8.4V: 115.2 oz/in (8.3 Kg/cm)
Speed:
- 6V: 0.097 sec/60°
- 7.4V: 0.079 sec/60°
- 8.4V: 0.071 sec/60°
Dimensions: 27x12.1x27.7mm
Weight: 18.1g
Working Frequency: 1520s / 333Hz12
Dead Band: 0.001ms (Default)
Temperature Range: -10 to + 60 Degree C12
